22C-D170A103

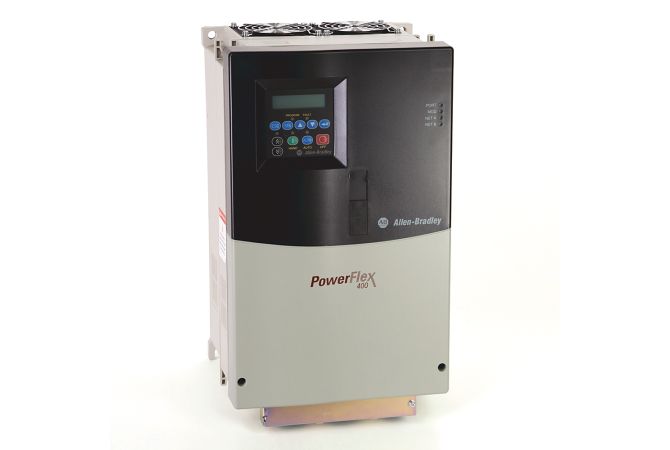

22C-D170A103 PowerFlex 400- 90 kW (125 HP) AC Drive

Rating:
0 % of 100
  Reviews Add a Review
AC Drive,90 kW (125 HP),480V AC Input,3 PH,50-60 Hz,170 A Output,IP30,UL-NEMA Type 1,Panel Mounting,With PID,PIP Algorithm And FireSystem Tie,In, Frame F, 0.98 PF,Integral Keypad And Led Display, RS485, Fixed Terminal Block Connections.
22C-D170A103 PowerFlex 400- 90 kW (125 HP) AC Drive is available to buy in increments of 1
0 pcs
37.106,99 RON
(price per 1 pcs ordered)
Enquiry
main product photo
Overview
Our PowerFlex 400 AC Drives are optimized for control of commercial and industrial fans and pumps. Built-in features such as purge and damper input provide a cost-effective solution for speed control in a broad range of variable torque fan and pump applications. An available packaged PowerFlex 400 Fan and Pump drive provides additional control, power, and enclosure options in standardized designs for a cost-effective solution for speed control in variable torque fan and pump applications.Power ratings: 200 240V: 2.2 37 kW / 3 50 Hp / 12 145 A 380 480V: 2.2 250 kW / 3 350 Hp / 6 460 A NEMA/UL Type 1, 12, 3R, and 4 enclosures Flange-mount and panel-mount options V/Hz control, slip compensation, and PID control Internal RS-485, Common Industrial Protocol (CIP), embedded Modbus RTU, Metasys N2, and Apogee FLN P1-plant floor network protocols Supports Drive Serial Interface (DSI) communication modules Drive overload protection, flying start, purge and damper input, hand/off/auto, and sleep/wake features Packaged drive options include disconnect and contactor bypass packages Available line reactor option Configuration and programming via integral keypad, remote keypad, or DriveTools SP software Premier Integration with PowerFlex AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time Packaged HVAC Fan and Pump Drive Options Main input disconnect 3-contactor full bypass with disconnect 3-contactor basic bypass with disconnect
Technical specifications
Input Voltage 480VAC, 3PH
Output Current 170 A Output
Power ND 90 kW (125 HP)
Enclosure Style IP30/UL-NEMA Type 1
