22A-A8P0N114

22A-A8P0N114 PowerFlex 4- 1.5 kW (2 HP) AC Drive

Rating:
0 % of 100
  Reviews Add a Review
AC Drive,1.5 kW (2 HP),240V AC Input,1 PH,50-60 Hz,8.0 A Output,IP20,UL-NEMA Type Open,Panel Mounting,With Internal CE CompliantFilter,With Brake IGBT, Frame B, 0.98 PF,Integral Keypad And Led Display, RS485, Fixed Terminal Block Connections.
22A-A8P0N114 PowerFlex 4- 1.5 kW (2 HP) AC Drive is available to buy in increments of 1
0 pcs
4.627,35 RON
(price per 1 pcs ordered)
Enquiry

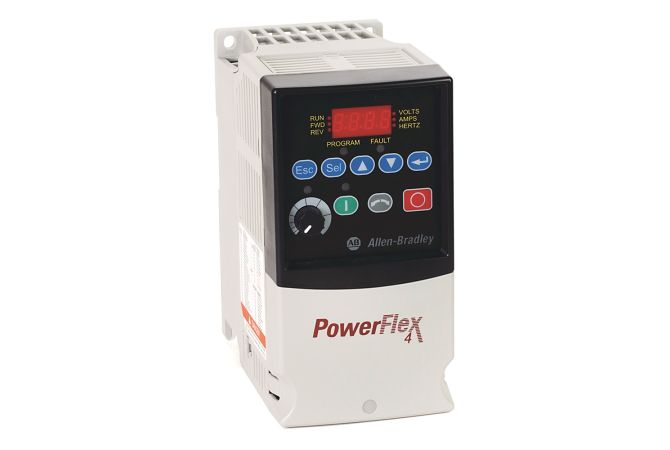

main product photo
Overview
Our PowerFlex 4 AC Drives are designed to meet global OEM and end-user requirements for simplicity, space savings, and cost efficiency. These compact drives provide intuitive features such as an integral keypad with local potentiometer and control keys that are active right out of the box.Power Ratings 100 120V: 0.2 1.1 kW / 0.25 1.5 Hp / 1.5 6 A 200 240V: 0.2 3.7 kW / 0.25 5 Hp / 1.4 17.5 A 380 480V: 0.4 3.7 kW / 0.5 5 Hp / 1.4 8.7 A IP20 NEMA/UL Type Open, plate drive, flange mount, and DIN rail Optional IP30 NEMA/UL Type 1 enclosure conversion kit Ambient temperatures up to 50 C (122 F) permitted with minimal spacing between drives Zero Stacking Drives for ambient temperatures up to 40 C (104 F) V/Hz control, slip compensation Integral RS-485 communication Optional serial converter module for use with any controller with DF1 messaging Optional ControlNet , DeviceNet , EtherNet/IP , Profibus DP, BACnet , and LonWorks communication modules Drive overload protection, ramp regulation, and flying start Configuration and programming via integral LCD keypad or software Premier Integration with PowerFlex AC drives uses the Logix control platform to simplify parameter and tag programming and reduce development time
Technical specifications
Input Voltage 240V AC, 1PH
Output Current 8.0 A Output
Power ND 1.5 kW (2 HP)
Enclosure Style IP20/UL-NEMA Type Open
